A.P.C.S Pty. LTD


A.P.C.S. provides Industrial Grade Instrumentation in over 200 different modules. These modules can be used for a variety of functions and a variety of mounting methods.

These modules can be used as Transmitters, Isolators, Signal Level Converters and Alarms for :

	Pressure
	Pulse to Analog
	Analog to Pulse
	Scaling
	Ramping
	Sensor Conditioning

A.P.C.S. also carries Temperature and Liquid level probes and monitors. Temperature Probes can be configured as Thermistors or Pt100 RTD's. Wetted ends available in 316L Stainless Steel for High Purity - Low Contamination Applications.

A.P.C.S. also manufactures Calibrators, Bench Top Simulators and Sources.

If you need more information or catalogs - go to our Feedback Link.

Some of A.P.C.S.'s fine products ......

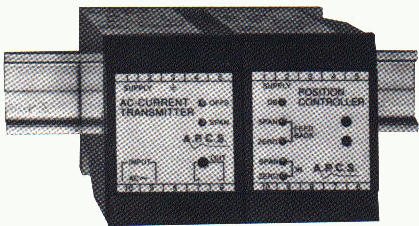

Series 100 -


This family of modules is the back-bone of the A.P.C.S. product range. The Series 100 is auxiliary powered and designed to be easily installed and used. They are housed in 52mm housings for maximum electrical insulation:

Features:

	AC and DC supply - models 240V,120V, 24VAC - 12V, 24V, and 48VDC
	All standard process inputs available
	Wide range of input/output combinations
	Interface to most sensors
	Single and dual channel alarms, contact output
	LED trip status and output indication
	0.2% to 0.5% accuracy

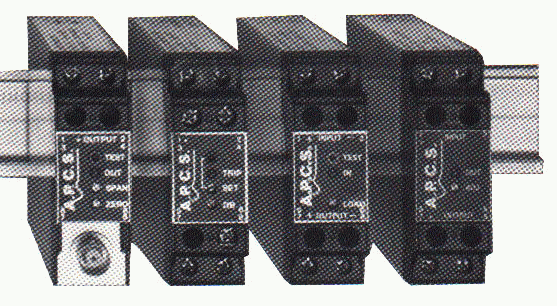

Series 200 -


Series 200 is a slim-line range of modules designed to be auxiliary, output loop or signal powered. The 22.5mm wide housing provides maximum electrical insulation with the minimum foot-print:

Features:

	12VDC to 48VDC power supply
	All standard process inputs available
	Wide range of input/output combinations
	Interface to most sensors
	Single and dual channel alarms, contact output
	2KV isolation
	0.2% to 0.5% accuracy

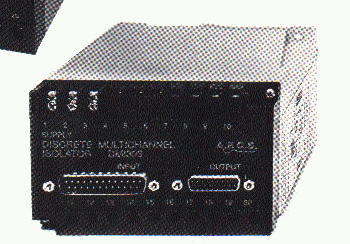

Series 300 -


The multi-channel alarm unit MCA301 provides continuous and simultaneous monitoring of up to five inputs in a 20 terminal DIN rail mount case. These 20-terminal products are part of a "niche products" group, specifically designed to fill special monitoring requirements.

Other models include Discrete 24-channel Isolator, Discrete 8 channel Isolator and 8 channel Multi-plexer ...

Features:

	Wide range of AC and DC supply voltages
	All common process inputs available
	Common relay output
	Mixture of inputs accepted
	LED alarm indication for each point
	Relay status indication
	Latched contact with front panel reset

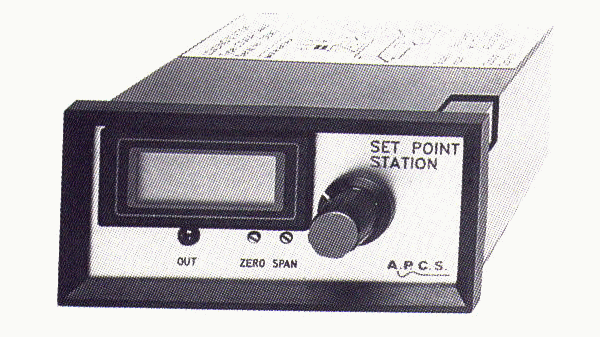

Series 400 -


This series of panel mount loading stations are used to generate process control signals for manually controlling plant processes.

Other Series 400 products include OEM bar graph indicators ....

Features:

	Popular 48 x 96 DIN format
	A full range of AC & DC supply voltages
	All standard process signals produced
	Zero and Span controls
	3 1/2 LCD display of output option
	Auto/Manual switch option

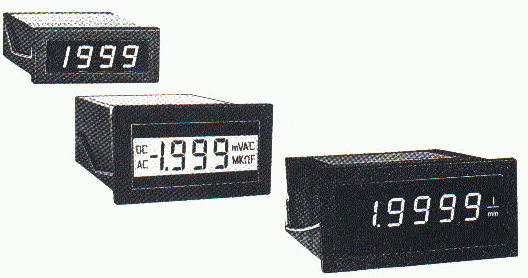

Digital Panel Meters -


This series of Digital Panel Meters compliments their other fine products. These DPM's can be used as replacements for many other OEM's equipment ... or integrated into your new designs ......

Features:

	DIN sizes include 24 x 48 and 48 x 96mm
	240/120VAC - 24VDC, 5VDC and Loop powered models
	LED and LCD panels available
	3 1/2, 4, and 4 1/2 digit models
	Programmable versions
	Bar Graphs
	Integral Trip points
