Micron Instruments

Micron Instruments is a developer and manufacturer of high reliability, high performance silicon semi-conductor strain sensing and temperature sensing elements. These basic sensing elements are the main component in transducers.

Micron produces a large variety of sensor products, gages and gauging services. They can also produce custom gage designs for many diverse applications. They can also provide corrosive resistant titanium pressure sensors for commercial OEM users.

Micron produces a quality line of Smart Meters, Panel Meters and Pressure Standards to compliment their transducers.

Let ARCH Computing Services Application Engineer's help you find the right Micron Product for your application. For more information or catalogs - go to our Feedback Link ...

Products:

	Pressure Transducers
	Pressure/Temperature Transducers
	Liquid Level Sensors
	Biomedical Research Sensors
	Smart Meters
	Panel Meters
	Pressure Monitors
	Pressure Standards

Pressure Transducers -

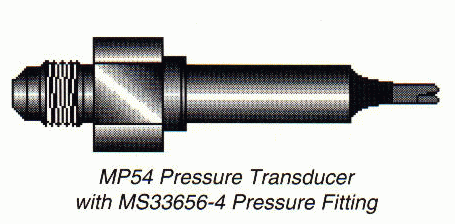

MP Series Pressure Transducers

Miniature, low cost, general use pressure transducers in constant voltage or constant current mode. Available in pressure ranges from 25 to 10000 psig.

Features:

	Small diameter.
	Corrosion resistant.
	Flange or Flush Mount models available.
	Wide Range of Pressure

Smart Pressure Transmitter -

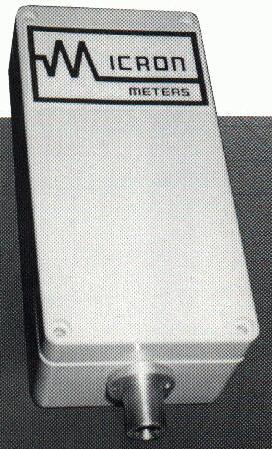

MST10 Smart Transmitter

This transmitter is designed to provide excellent accuracy for monitoring process control pressures in an environment with uncontrolled temperatures, or in the laboratory as a calibration standard.

The standard interface is RS-232C; both RS-422 and RS-485 formats are available as options. The transmitter is user programmable to select data outputs to 9600 baud.

Features:

	Bi-directional RS-232C Interface.
	4-20 mA Output.
	High and Low Alarms.
	Accuracy to +/-0.05% of reading.
	Addressable to 99 Positions.
	Electronic Damping.
	Automatic Tare
	Selectable Pressure Engineering Units.

Wide-Range Pressure Standard -

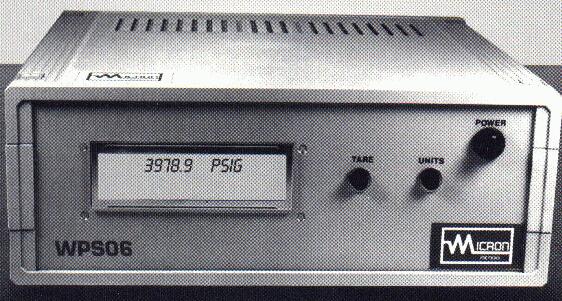

WPS06 Wide-Range Pressure Standard

Micron's WPS06 is a wide range, high accuracy digital pressure standard incorporating a 16 bit Analog/Digital converter to maximize the resolution and enhance the overall accuracy. Since the WPS06 has an accuracy based on the reading, it can be used to calibrate several instruments with different ranges without degradation to the accuracy of the instruments at the lowest pressure ranges.

The vacuum florescent display consists of two rows of twenty characters each. The top row indicates the true pressure value, and the bottom row displays the full scale range of the instrument. Twenty-two different engineering units are programmed into the device. The user can selectively deactivated units that are not required using the standard RS-232C interface. RS-422, RS-485 and IEEE-488 options are available.

Features:

	+/-0.05% reading accuracy from 100 to 10,000 psi.
	Maintains accuracy from 40^oF to 104^oF.
	22 Engineering units.
	RS-232C interface standard.
	Tare function.
