Measure up with ... Sensorex

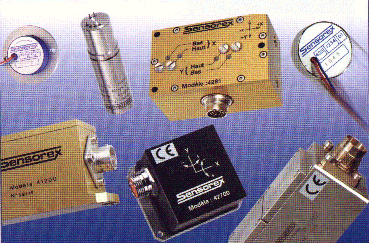

Sensorex is one of the premium names in Displacement Sensors, Signal Processors, Inclinometers, Accelerometers, Electronic Interfaces and Microelectronics. Sensorex equipment has been selected and adapted for a number of aviation, military and space programs as well as all sectors of industry.

In order to satisfy the quality requirements of all their products, Sensorex products are 100% tested. Their products performance is guaranteed and their Quality system is ISO 9001 certified and AQAP 120 assessed.

Contact ARCH Computing Services Application Engineers for assistance in utilizing these fine products. For more information or catalogs - go to our Feedback Link ....



Products:

Displacement Sensors - LVDT and RVDT.
Inclinometers/Accelerometers.
Signal Processors and Electronic Interfaces.
Microelectronics



Displacement Sensors -



LVDT and RVDT Displacement Sensors



Sensorex offers a wide range of solutions for measuring linear and angular displacement.

Sensorex sensors are particularly well suited for use in severe environments or where extended Mean-Time-Between-Failures (MTBF) is necessary. A wide choice of options and their ability for custom design enable them to provide a solution for almost all applications.

Sensorex also has a standard range of LVDT's for intrinsically safe (Ex) and nuclear environments ...



Features:

Measurement range 0 to 500mm/0 to 120o
Diameter 8, 9, 12, 20, 27 mm
Linearity - from 0.1% PE
Temperature range from -200oC to +400oC
Thermal Drift - <150 ppm or 500ppm/oC
Pressure proof - up to 40 psig(600 bar)
Versions - AC/AC or DC/DC



Inclinometers and Accelerometers -



Inclinometer and Accelerometer Sensor Families



Sensorex inertial sensors are used in measurement and control to monitor angular displacement and linear acceleration. Their sturdy design means they are particularly resistant to severe environments such as industrial processing, iron and steel industry, civil engineering, seismology and fire control systems.

Sensorex also has a range of inertial references, comprising all the necessary accelerometers, gyroscopes and signal conditioning ...



Features:

Measurement range: +/-1o to +/-90o, 0 to 100g, up to 1000o/sec
Linearity deviation - 0.02%, 1% PE
Temperature range - -40oC to +85oC
Bandwidth - continuous, 15Hz, 100Hz, 1KHz and 15KHz
Outputs - +/-5V, 4-20mA, digital



Signal Processors and Electronic Interfaces -



Sensorex Electronic Processors



Whatever your application, Sensorex can offer you a set of complimentary electronic modules to interface with all the sensors in our range and also most other sensors on the market.

From specific hybrid technology or ASIC circuit-based components to multi-channel digital interfaces with bus outputs, Sensorex is an expert on analog signal processing and combines it with digital intelligence to obtain increasingly high-performance and complex functions ...



Features:

Components and Complete solutions for - LVDT, RVDT, potentiometer, capacitate, strain gauge, inclinometer, accelerometer and gyroscope.
AC and DC Multistandard power
Outputs - analog voltage/current, digital, RS-232 or 485, IEEE-488
Analog and Digital programmable interfaces
